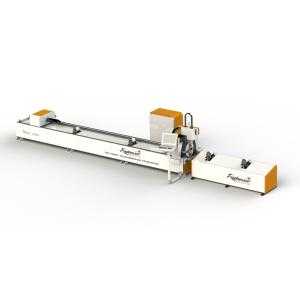

Dual-Chuck Zero-Remnant Laser Tube Cutter for Small Diameters (5-80mm)
Our small-diameter, dual-chuck laser cutting machine sets a new standard for precision and efficiency in lightweight tube fabrication. Designed specifically for manufacturers in the EU, US, and Middle East, this system is engineered to handle tubes from 5mm to 80mm in diameter with unparalleled accuracy. By integrating advanced dual-chuck technology and intelligent zero-remnant cutting, it eliminates material waste and maximizes productivity. Powered by a high-performance 1.5kW-3kW fiber laser and the sophisticated Bochu FS3000DE software, this machine guarantees seamless operation. With a rapid 30-day delivery to key global markets, we empower industries to accelerate production, reduce costs, and uphold the highest quality standards.
Key Features & Advantages
1. Dual-Chuck System with Zero-Remnant Technology
The synchronized dual-chuck system enables automatic, continuous transfer of tubes up to 6.5 meters. Our proprietary chuck avoidance programming dynamically navigates around gripping zones, allowing the laser to process the entire tube length. This eliminates "dead sections" and ensures true zero remnant cutting, with leftover pieces consistently under 100mm, dramatically improving material yield.
2. Precision-Optimized for Small-Diameter Tubes
Specifically designed for lightweight tubes (5-80mm), the machine features an auto-focus laser head that adjusts in real-time for varying wall thicknesses (0.5-4mm). This guarantees a cutting accuracy of ±0.03mm, delivering clean, burr-free cuts on stainless steel, aluminum, and copper tubes—perfect for high-precision applications.
3. Bochu FS3000DE Professional Cutting Software
At the heart of the system is the user-friendly Bochu FS3000DE software. It simplifies programming with automated nesting, one-click job setup, and intuitive simulation. This reduces operator training time and minimizes human error, making sophisticated tube cutting accessible and straightforward.
4. Global Edition Laser & Robust Safety
The machine is equipped with a reliable Raycus/Creator 1.5-3kW fiber laser, compliant with CE standards for easy import into the EU and other markets. The fully enclosed Class 1 safety system, with emergency stops and protective glazing, ensures full compliance with international safety regulations, protecting your operators.
Technical Specifications
| Parameter | Specification |
| Laser Power | 1.5kW - 3kW (Raycus/Creator Fiber Laser) |
| Tube Diameter Range | 5mm - 80mm (Round Tubes) |
| Maximum Tube Length | 6.5 meters |
| Positioning Accuracy | ≤ ±0.03 mm |
| Minimum Remnant Length | < 100 mm |
| Control System | CNC with Bochu FS3000DE Software |
| Delivery Time | 30 days to EU, US, Middle East |
Competitive Advantages
-
Maximum Material Savings: The combination of dual-chuck avoidance and zero-remnant technology can reduce material waste by up to 15%, directly lowering your production costs.
-
Unmatched Flexibility: Effortlessly switch between small-diameter tubes and short batch jobs without costly setup time, ideal for JIT (Just-In-Time) manufacturing.
-
Rapid Global Deployment: We guarantee a short 30-day shipping timeline to get you producing faster, supported by DDP (Delivered Duty Paid) logistics for a hassle-free experience.
-
Energy Efficient Operation: Fiber laser technology consumes up to 30% less power than traditional CO₂ lasers, supporting your sustainable manufacturing goals.
Frequently Asked Questions (FAQ)
Q: How does the machine achieve true "zero remnant" on small tubes?
A: The dual chucks work in sync. One chuck holds the tube while the other processes it. When the cutting head nears the gripping zone, the second chuck takes over, allowing the laser to cut right up to the very end of the tube, leaving a minimal remnant of less than 100mm.
Q: Is the Bochu FS3000DE software difficult to learn?
A: Not at all. The Bochu FS3000DE is renowned for its intuitive and user-friendly interface. It features automated nesting and simulation tools that make programming complex cut patterns simple, significantly reducing the operator learning curve.
Q: Are your lasers certified for use in the EU and US?
A: Yes. The global edition Raycus/Creator lasers are CE certified and built to meet international voltage standards (e.g., 220V/380V). This ensures smooth customs clearance and reliable operation in your region.
Q: What after-sales support do you offer?
A: We provide comprehensive remote programming support, on-site operator training, and a global warranty backed by accessible technical service networks in the EU, US, and Middle East to minimize any potential downtime.
Applications & Markets
This machine is the ideal solution for industries requiring high-precision, small-diameter tube cutting, including:
-
Automotive: Fuel lines, brake lines, hydraulic systems.
-
Aerospace: Lightweight structural components and fluid conduits.
-
Medical & Furniture: Precision frames, supports, and railings.
-
HVAC & Electrical: Complex conduit and copper tubing.
Tailored for manufacturers in the EU, US, and Middle East, this small-diameter tube laser cutter is your partner for enhancing precision, eliminating waste, and shortening lead times.
